STEPZ 130 Wide Drawbar Adapter Kit

STEPZ 130 Wide Drawbar Adapter Kit

Designed for 125–130 mm drawbar mounting

$260.00 AUD
$260.00 AUD
Sale Sold out

STEPZ.ADAPT-130

Fit Your STEPZ Kit to Wider Drawbars

Running a trailer with a 130 mm or 125 mm wide drawbar? The STEPZ 130 Wide Drawbar Adapter Kit allows your STEPZ Next-Gen ladder to mount securely to wider setups for a clean, simple install.

Includes HDPE packers to align your ladder when used with a STEPZ Platform setup.

Designed to work with the STEPZ Next-Gen Kit.

Product Features

  • Designed for 125–130 mm wide trailer drawbars
  • Aligns with STEPZ base plate mounting pattern
  • Includes HDPE packers for correct ladder positioning
  • Provides a clean, secure mounting solution without modification
  • Marine grade aluminium construction

Standard Kit Inclusions

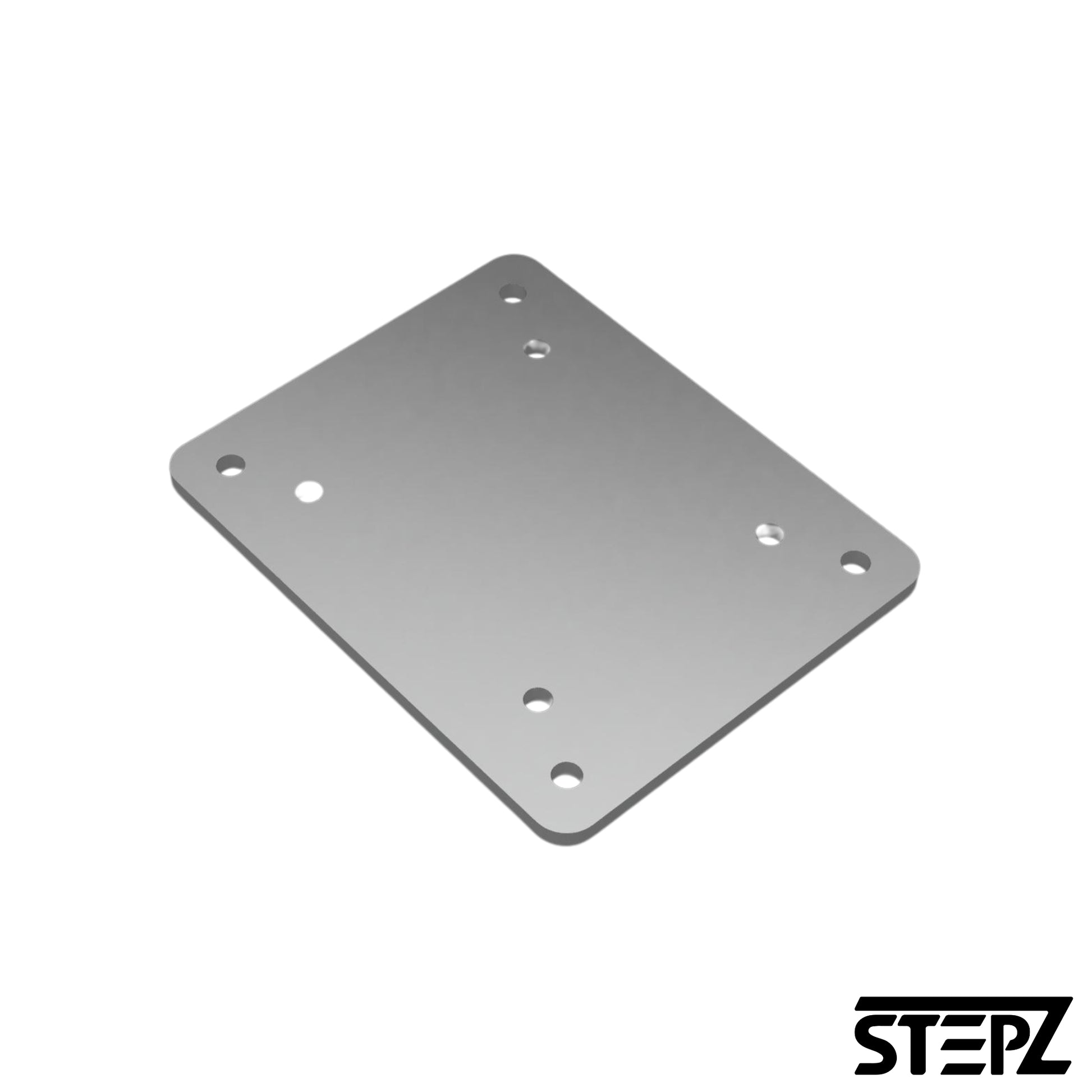

  • 1 x 130 Wide Adaptor Plate
  • 2 x Fish Plates
  • 2 x HDPE Underside Packers (only required when installing a platform).
  • 1 x Installation Instructions
  • Bolts/Nuts/Washers included

Specifications

Use Case: Adapter kit designed to fit Stepz Next-Gen ladders to wider drawbars. Provides a strong, clean, and adjustable mounting solution for trailers with 130 mm or 125 mm wide drawbars.

Specifications:

  • Compatible Drawbars: 125 mm & 130 mm wide
  • Maximum Drawbar Depth: 150 mm (standard bolts included) — for deeper drawbars up to approx. 300 mm, use longer bolts or threaded rod (allthread)
  • Material: Marine-grade Aluminium with a raw, factory finish (unpolished, untreated
  • Fixings: Stainless steel

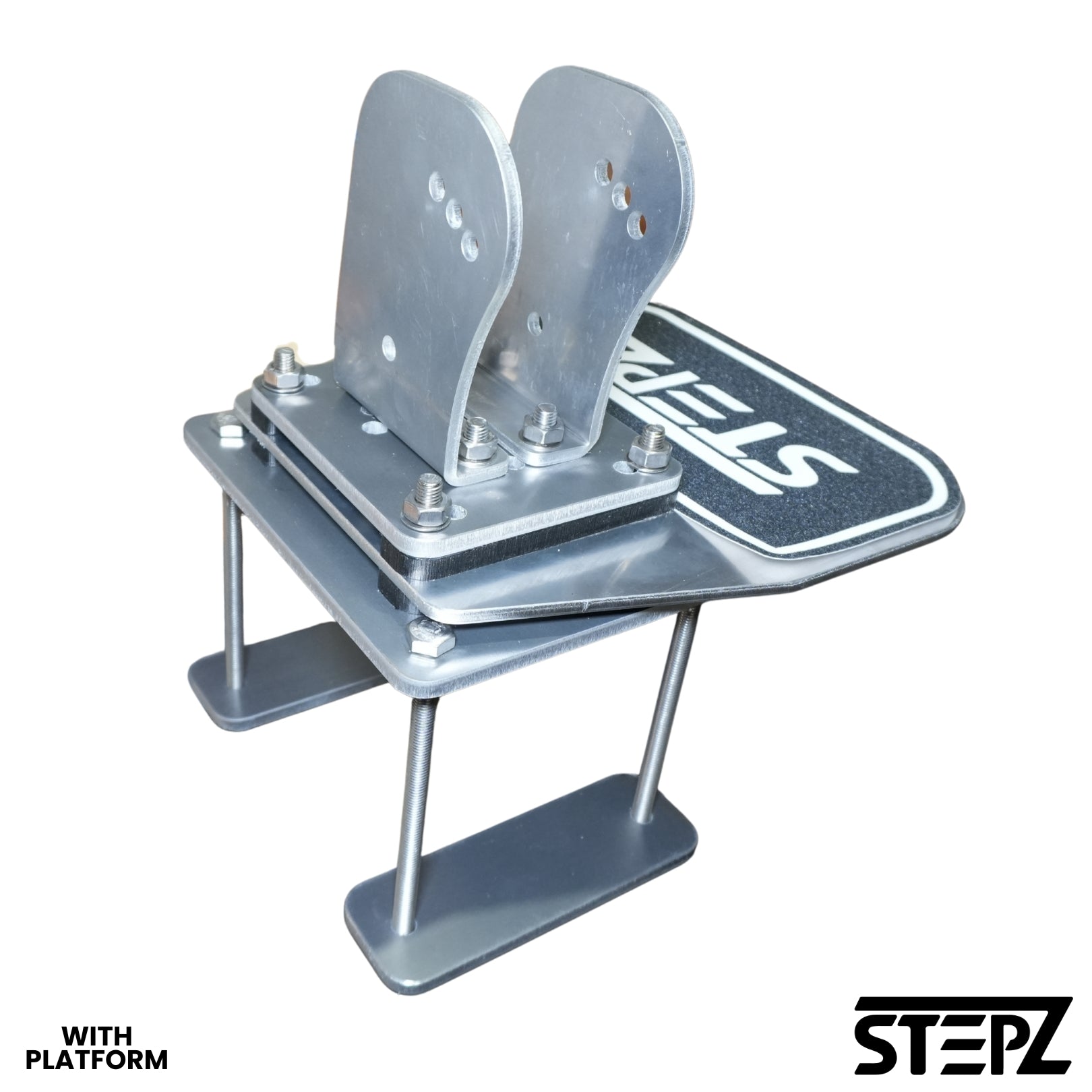

  • Platform Compatibility: Can be used in conjunction with the Stepz Platform Kit — simply fit the additional HDPE packers provided
View full details

Why Add the STEPZ 130 Adapter Kit

The STEPZ 130 Adapter Kit allows your ladder to mount securely to wider drawbars without modification. It provides a strong mounting solution that lines up with your STEPZ base plate for a clean install.

Works with the STEPZ Next-Gen Kit.

View Next-Gen Kit

Frequently Asked Questions

Shipping & Delivery

  • We offer free delivery on orders over $399 Australia wide. For orders below $399, a flat shipping fee of $20 will be applied.

  • Once your order is placed, it will be dispatched within 1-2 business days.

  • Tracking details will be emailed to you once your order has been fulfilled.

What Materials Do We Use?

  • Aluminium

  • Nylon

  • HDPE

  • Stainless Steel

  • Perspex

Will The STEPZ Ladder Fit My Trailer?

STEPZ ladders are designed to fit most setups, but trailers and boats can vary.

To check fitment, just take a quick measurement using our STEPZ Measurement Guide to see how the ladder will sit on your drawbar.

View STEPZ Measurement Guide

Still unsure? Send us a side-on photo of your drawbar area and we’ll check it for you. You can email info@stepzco.com or message us through live chat and we’ll get back to you within 24 hours.

If your setup needs something different, we also offer custom adapter plate solutions to help make STEPZ work with your trailer.
