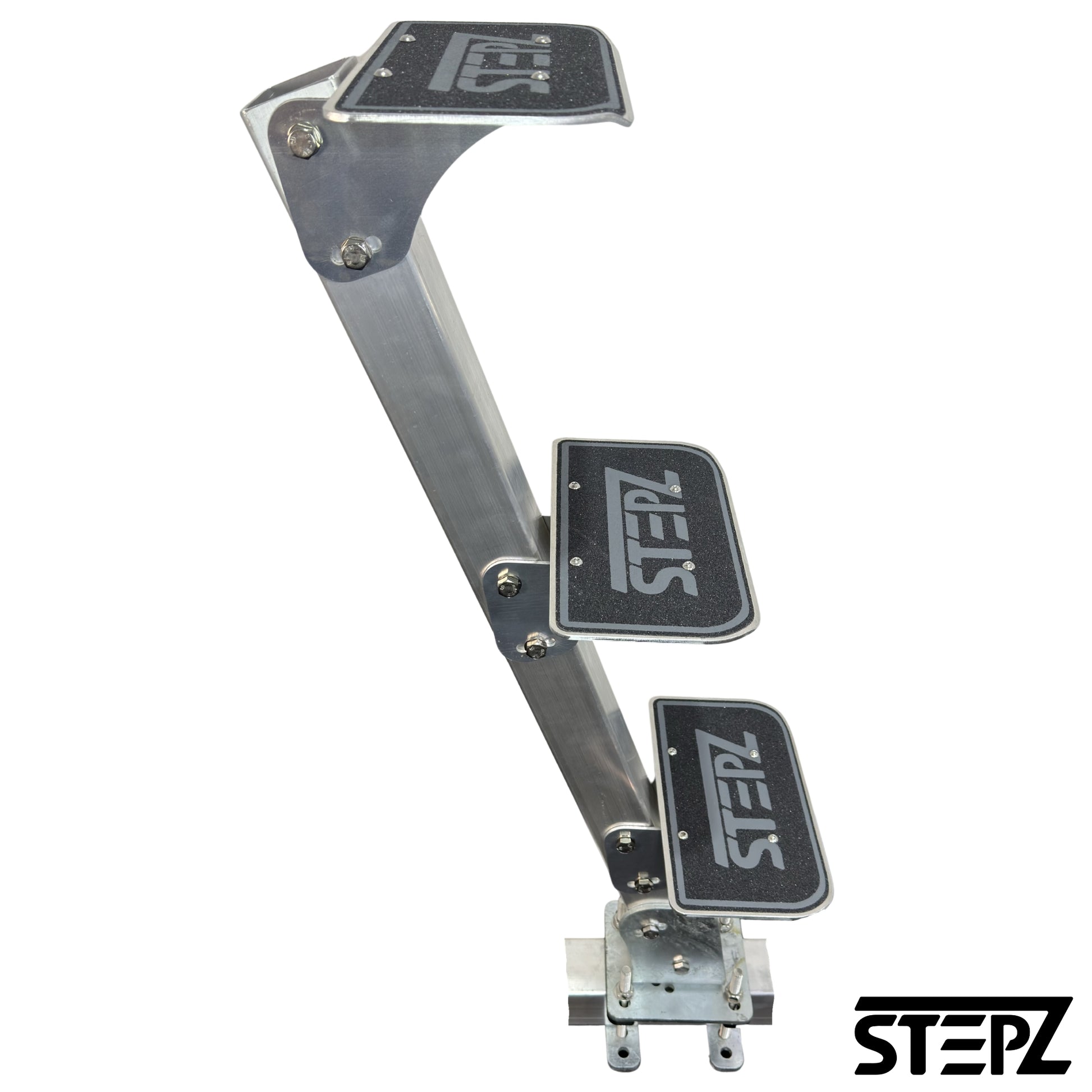

Boat Trailer Ladder - STEPZ Next-Gen
Boat Trailer Ladder - STEPZ Next-Gen
SKU:STEPZ.NG3-KIT
Couldn't load pickup availability
Take The Hassle Out Of Boarding

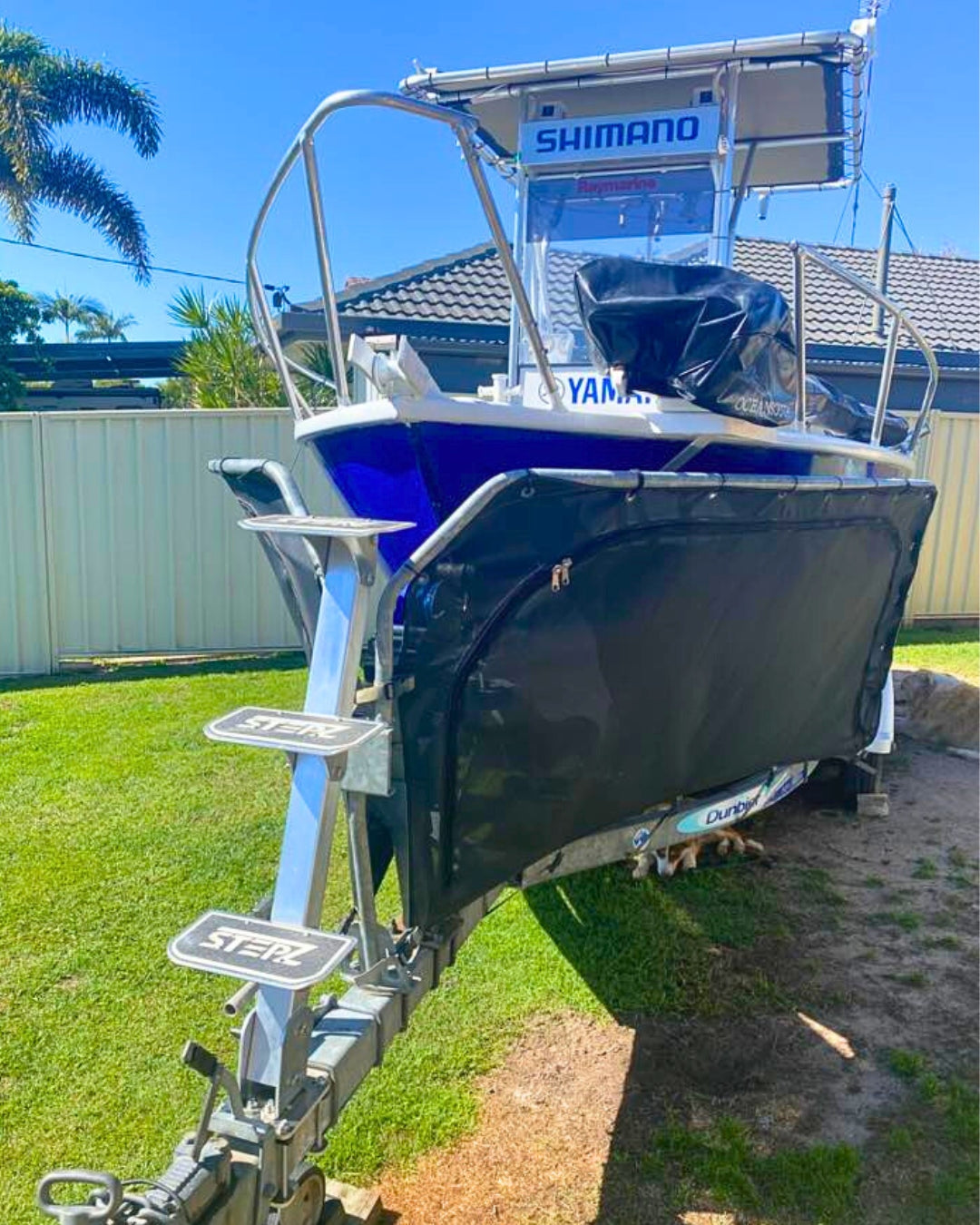

Why struggle at the ramp when you can step up with ease? The STEPZ Next-Gen Trailer Ladder is your game-changer for smooth, secure boat access. Designed for real-world boating, it's the ultimate must-have for effortless boarding whether you're heading out solo or with your crew.
Built tough and made for adventure, the STEPZ family is here to give you back control at the ramp—no more awkward climbs, just quick, safe boarding. Ready to level up your launch game? Dive into the STEPZ range today!

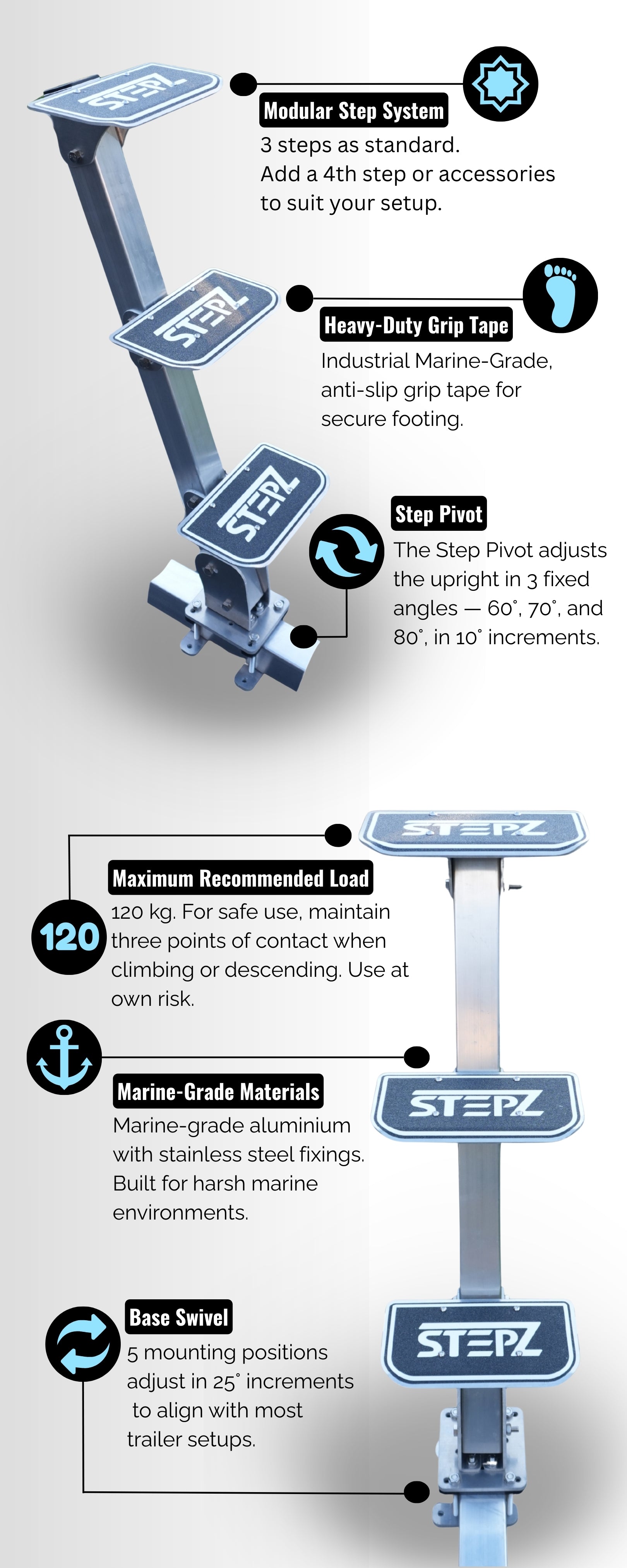

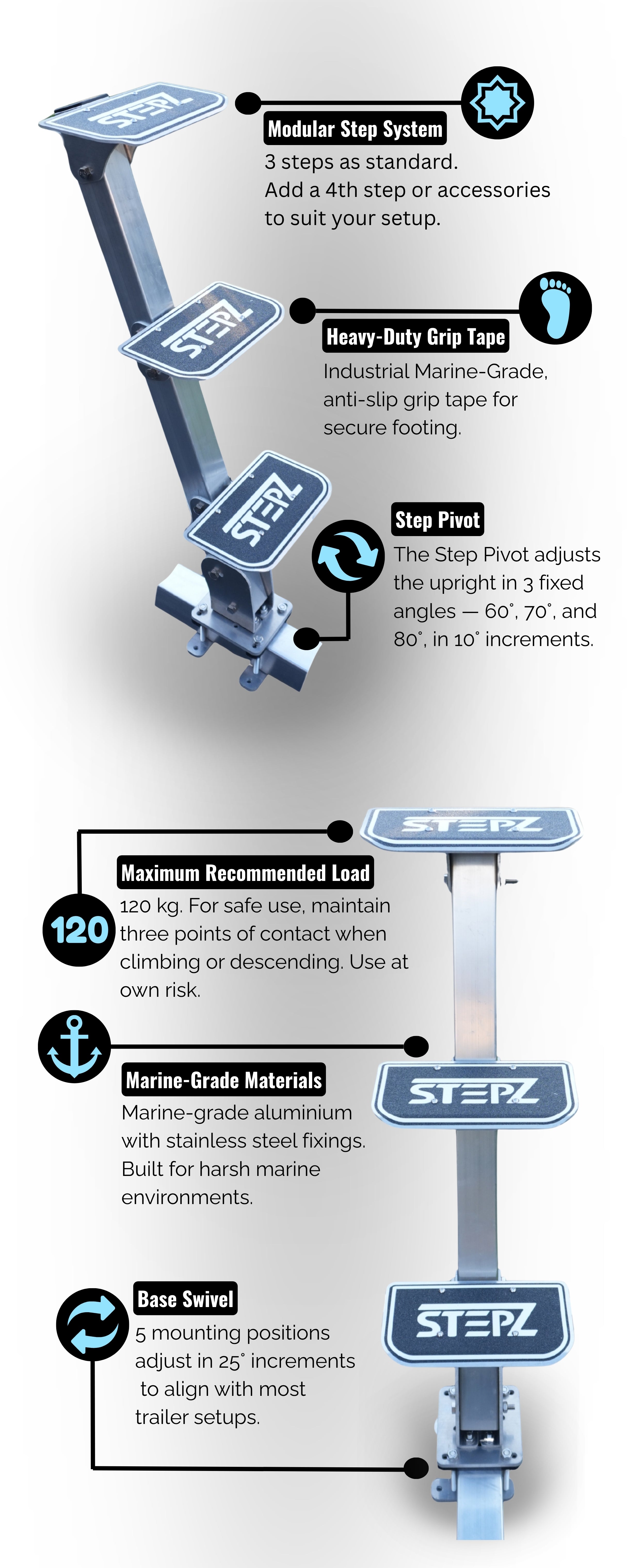

Product Features
Product Features

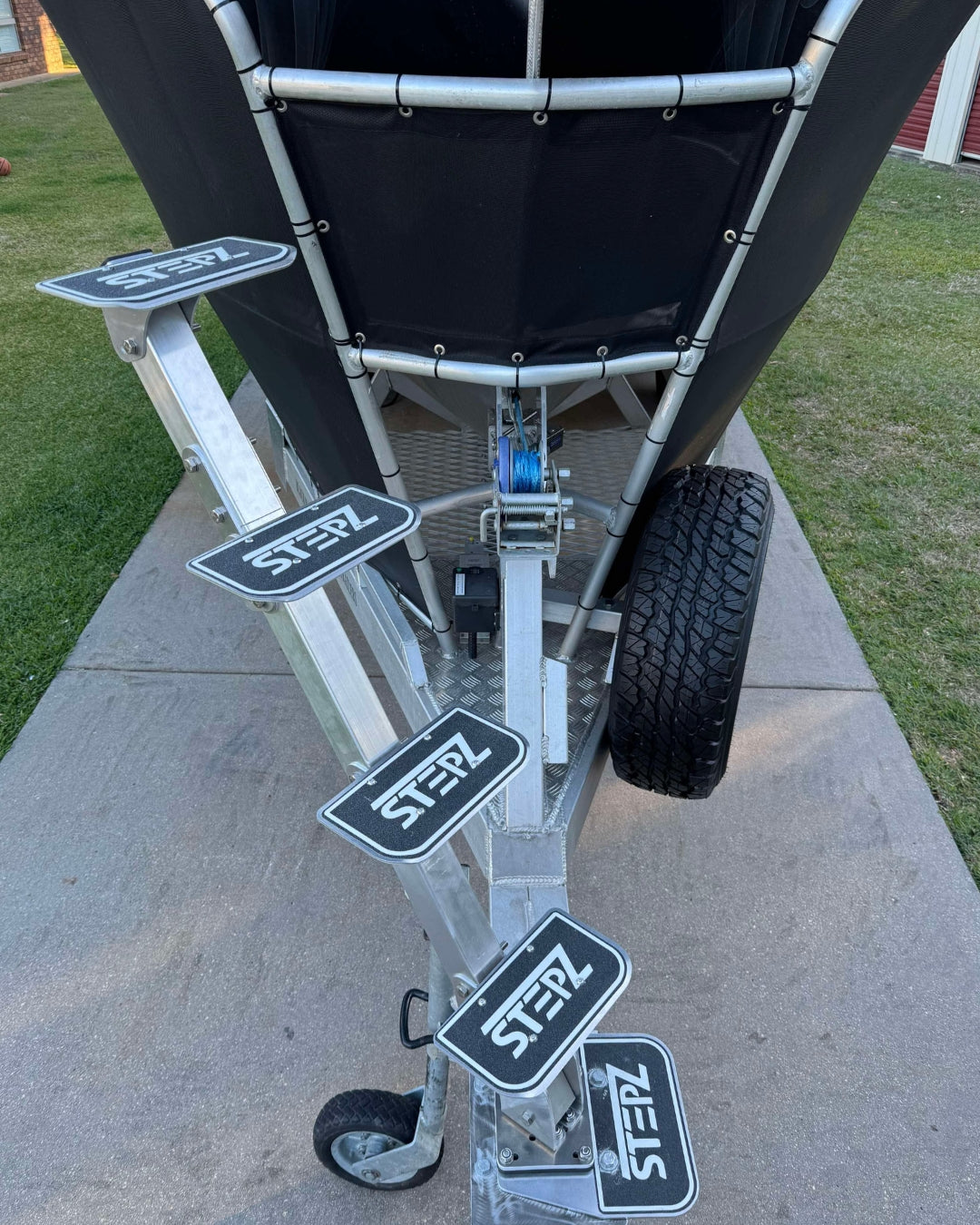

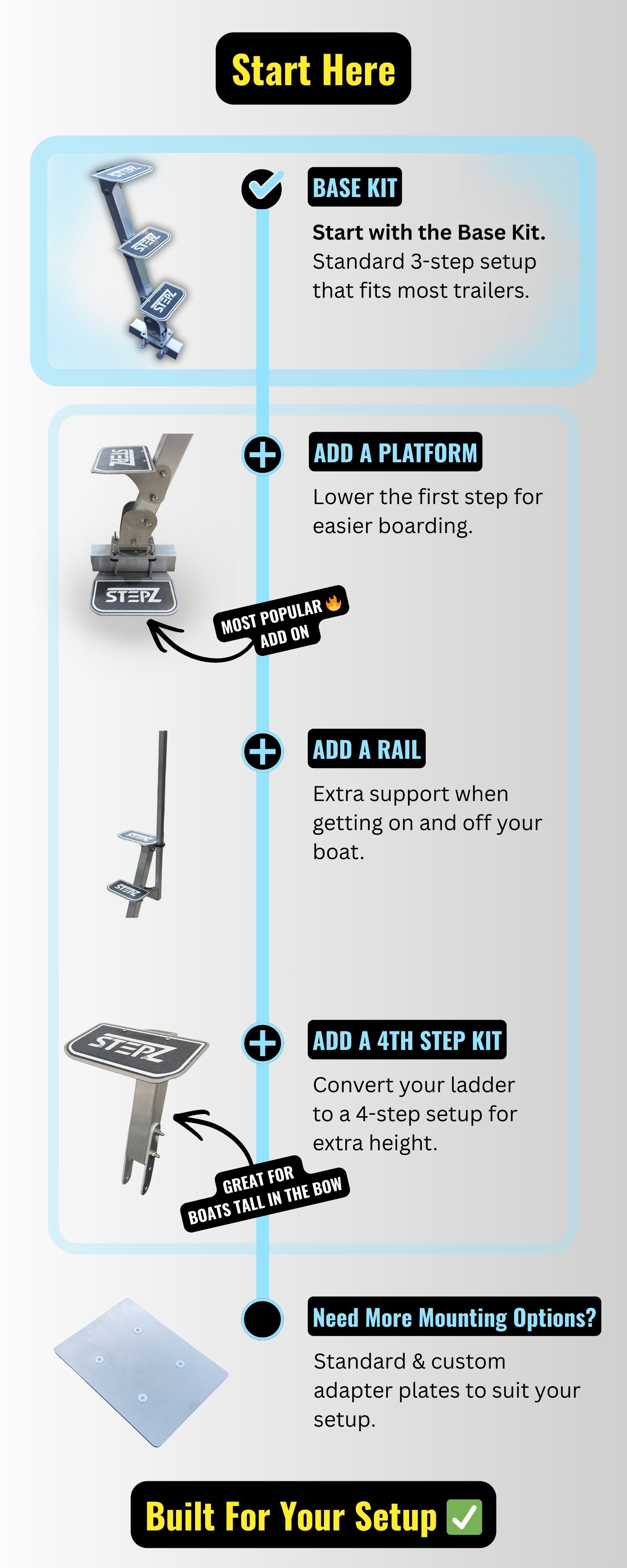

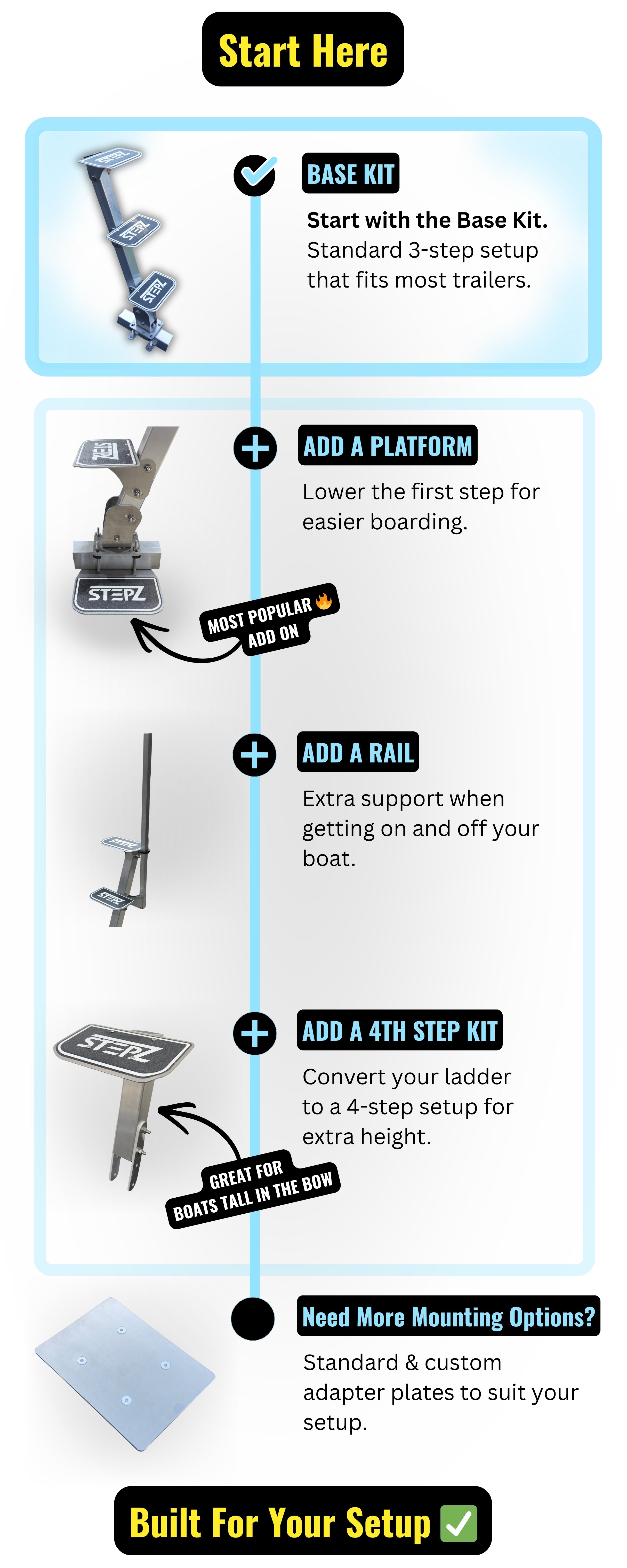

- Modular Step System: Includes 3 steps as standard, with the option to expand to a 4-step configuration using the Step Add-On Kit. Designed to suit varying trailer heights and boarding preferences. If a 2-step setup is required, simply cut down the RHS and use two steps — keeping the remaining assembly as a spare.

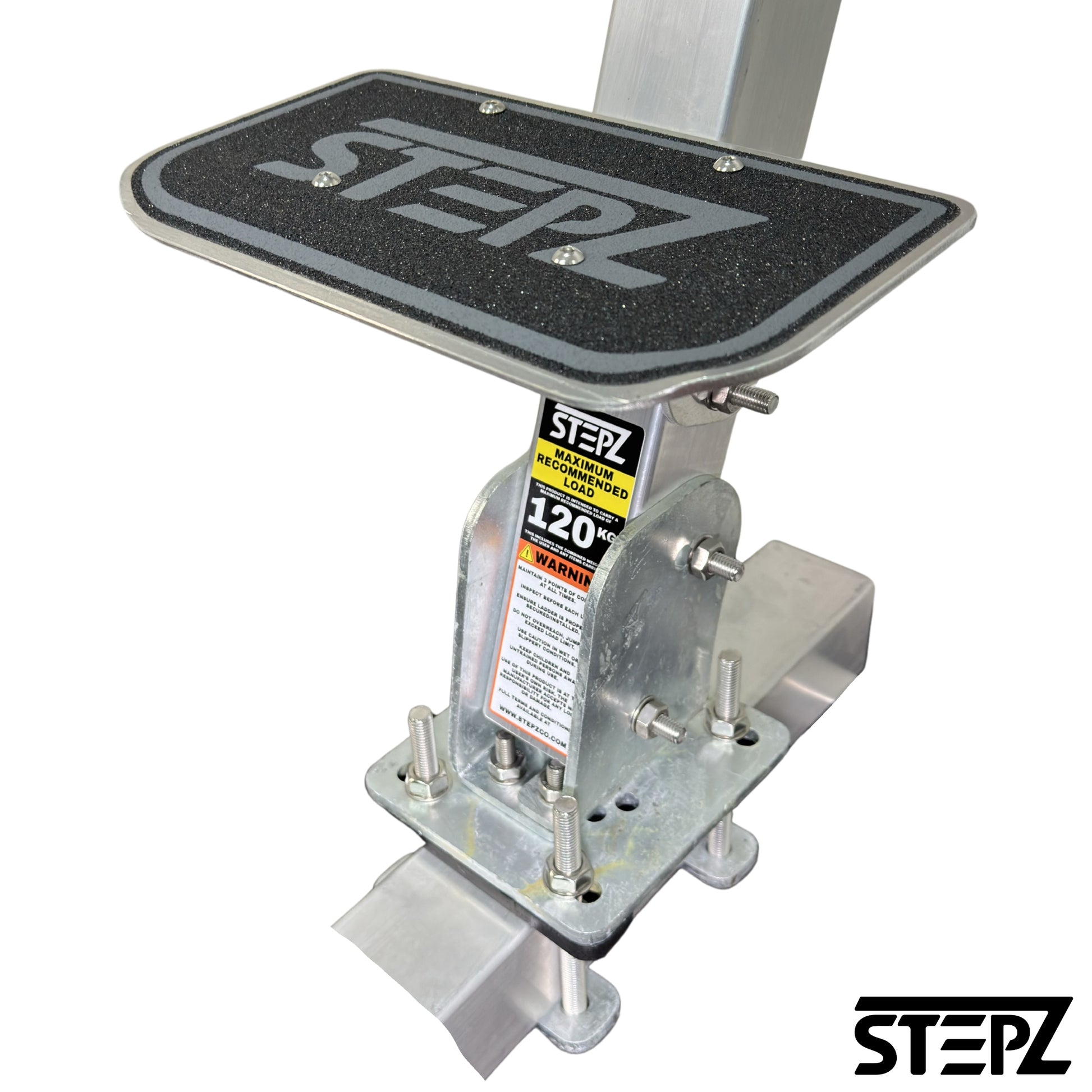

- Base Swivel: The Base Swivel offers five fixed mounting positions, adjusting in 25° increments — two positions to the left, two to the right, and one centered. This allows for precise alignment with your trailer setup while also helping to clear winch posts, jockey wheels, and other components that may obstruct standard mounting.

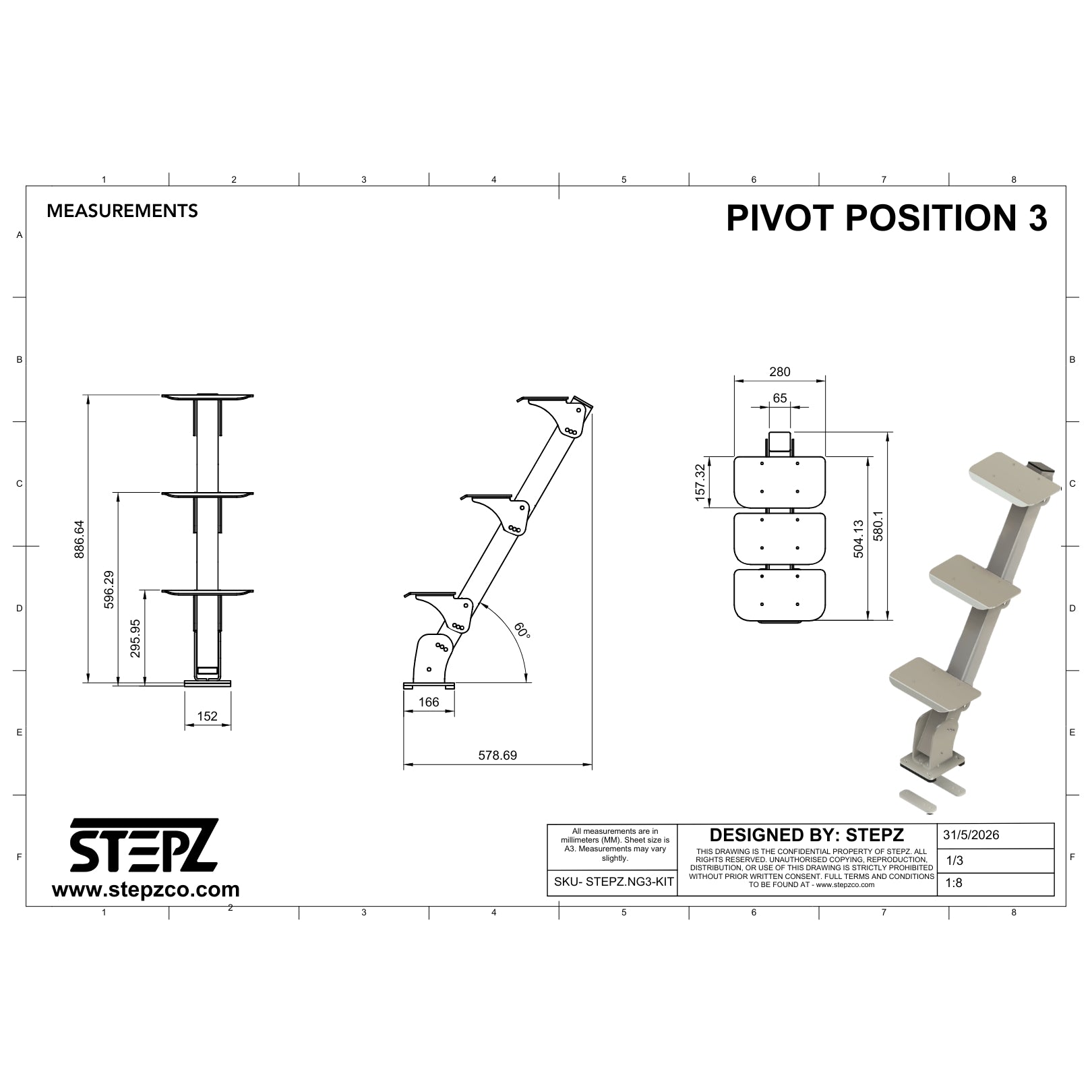

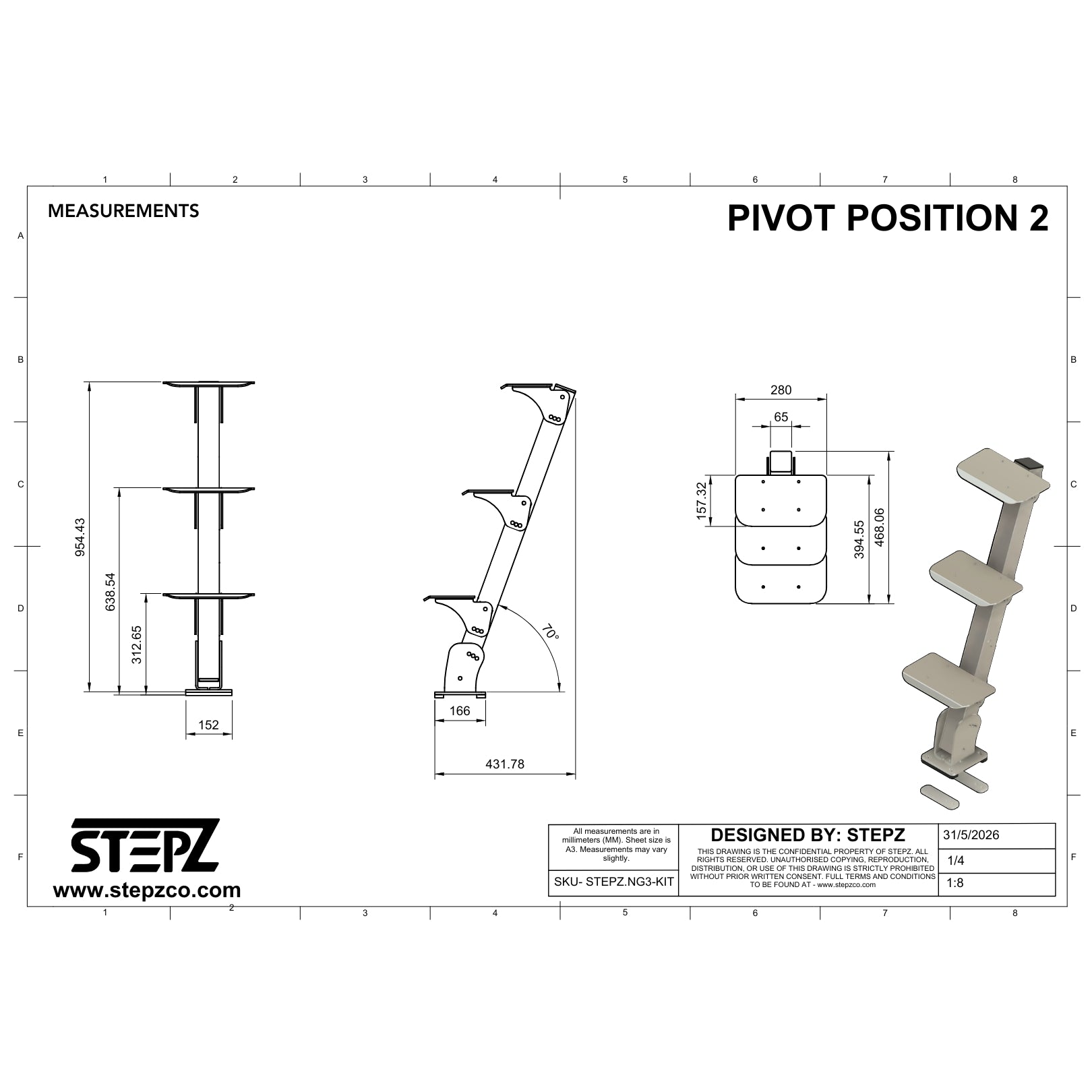

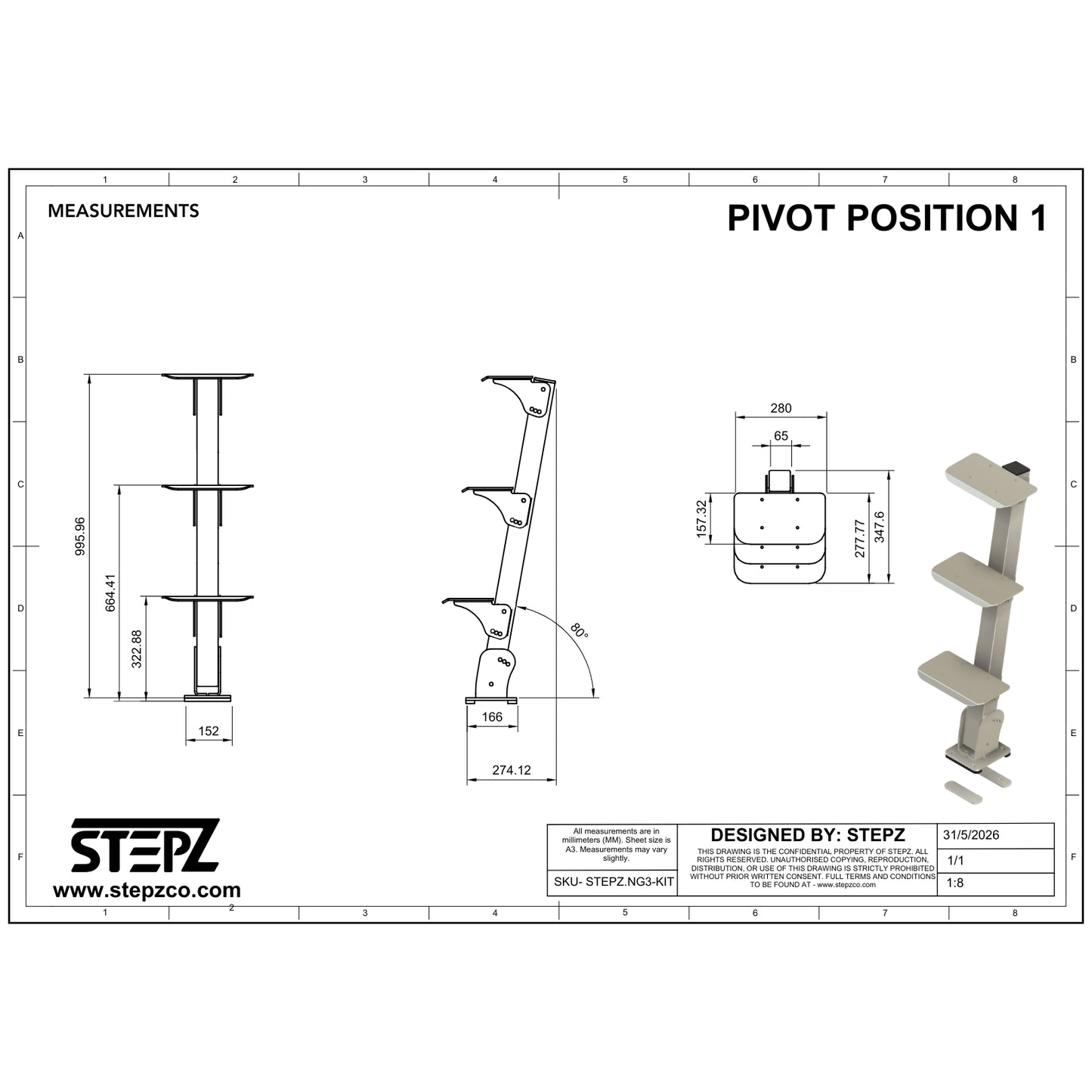

- Step Pivot: The Step Pivot adjusts the upright in three fixed angles — 60°, 70°, and 80°, in 10° increments. This ensures a comfortable climb angle and also allows the ladder to be angled to avoid interference with boat overhangs or trailer accessories.
- Inline Step Assembly: Features a bolt-together, inline step configuration. While the default setup is straight, users can customise their own offset by re-drilling holes if needed to better suit specific trailer setups.
- Optional Platform Kit (Highly Recommended): Lowers the first step to improve accessibility — ideal for higher trailers or users seeking a more comfortable entry point.
- Optional Rail Kit (Highly Recommended): Provides added safety and stability when boarding and disembarking, especially in wet or uneven conditions. (Can be installed to either side).

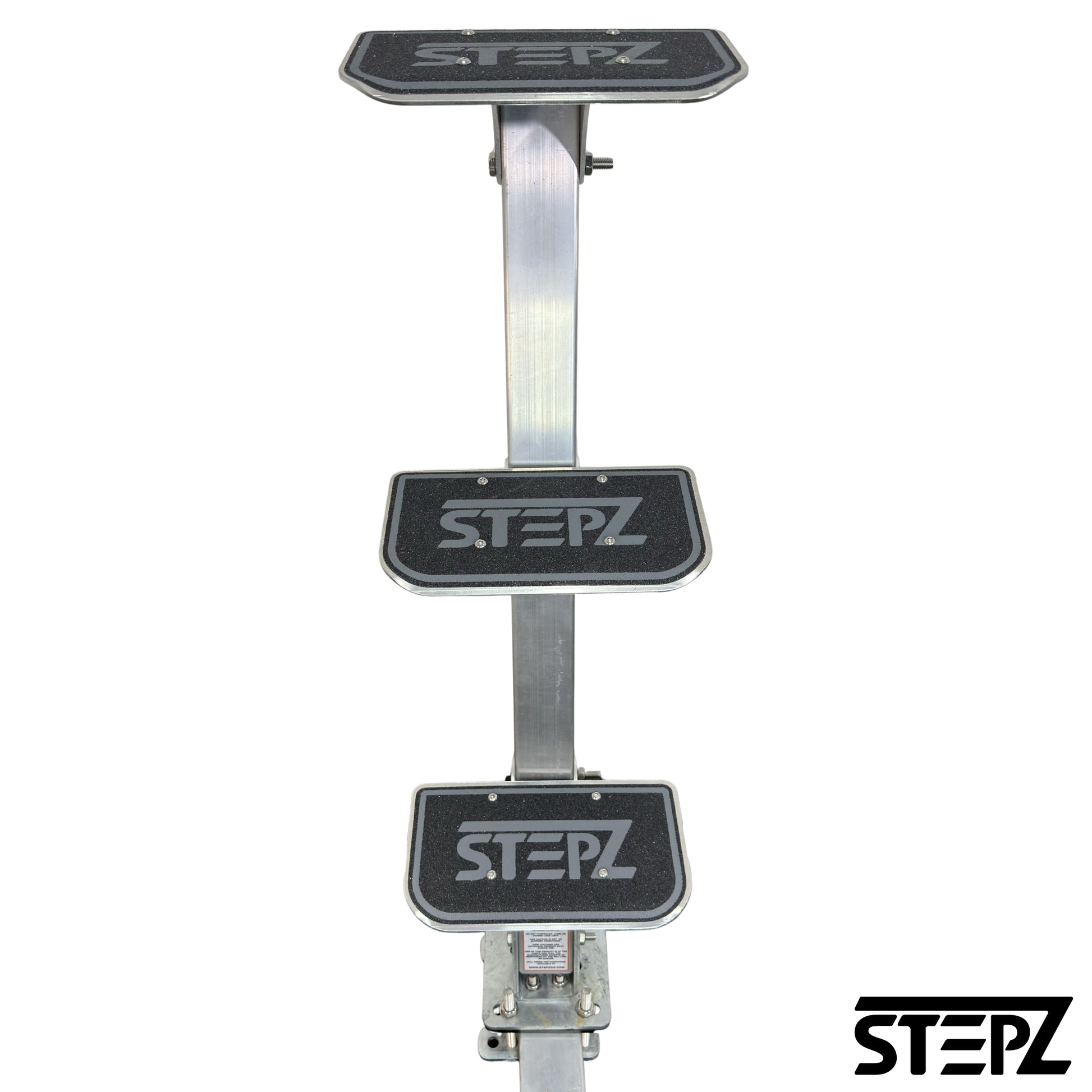

- Heavy-Duty Grip Tape: Each step is fitted with industrial-grade grip tape, custom-embroidered with the STEPZ logo. Designed for superior traction and long-term durability, even in marine environments.
- Marine-Grade Materials: Constructed from marine-grade aluminium and assembled using 316 stainless steel fixings to ensure long-lasting performance and corrosion resistance in harsh conditions.
- Load Rating & Safety: Rated to 120kg. For safe use, maintain three points of contact when climbing or descending. (Use at own risk).

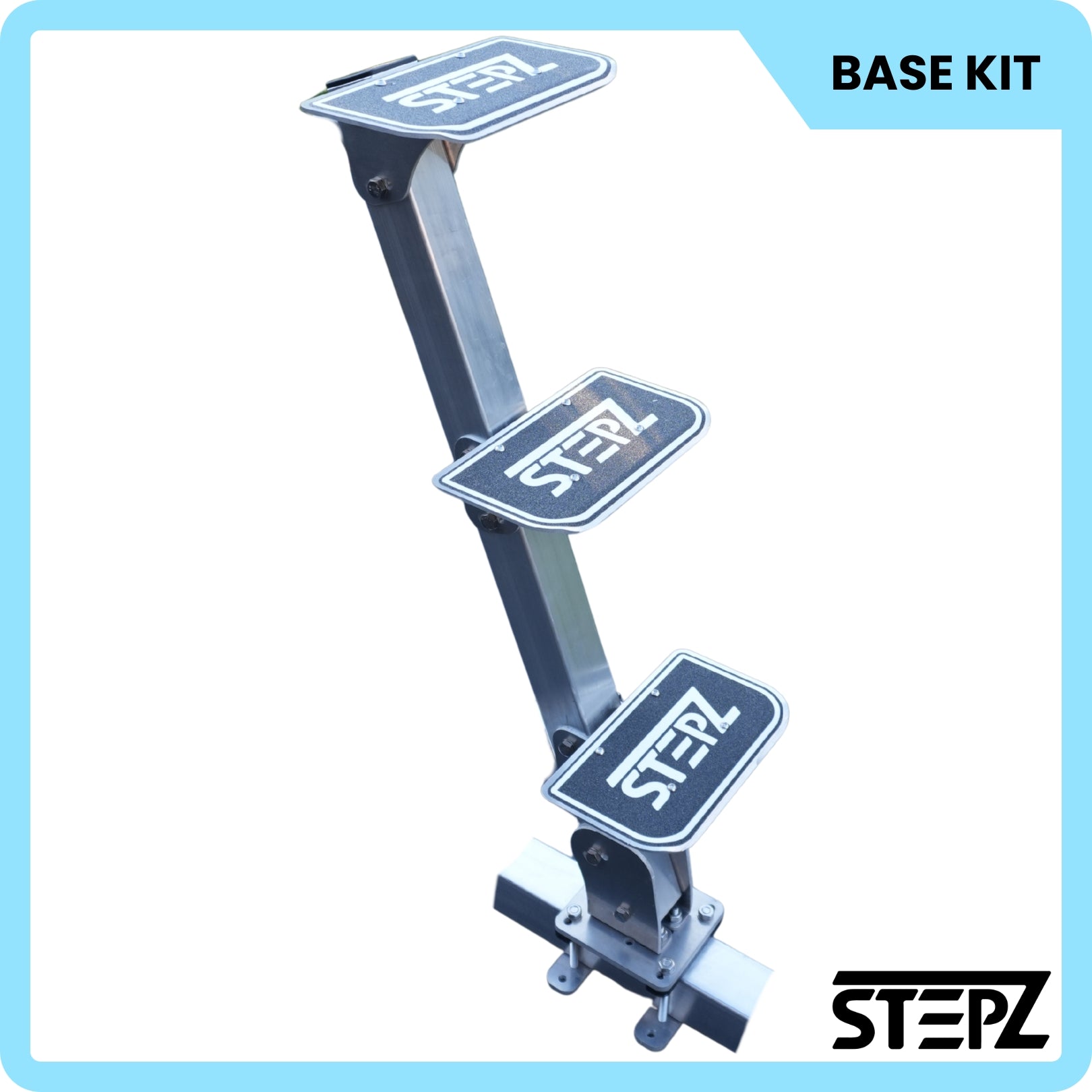

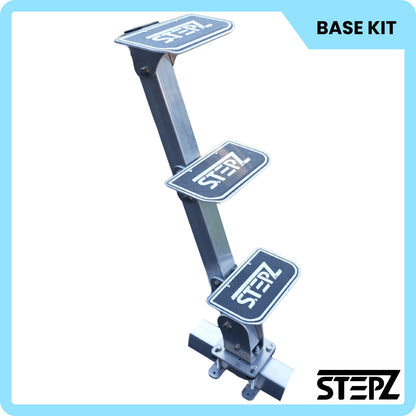

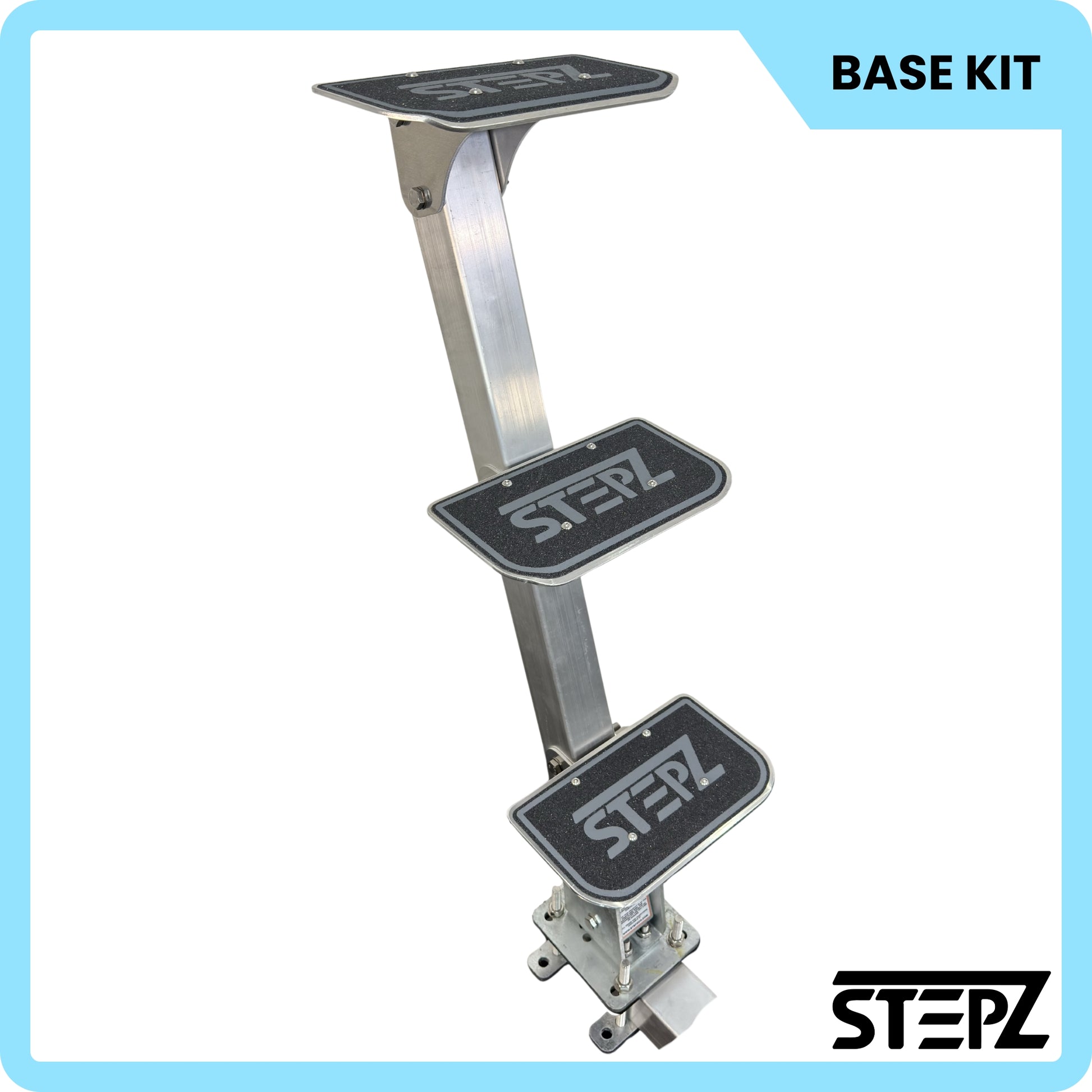

Standard Kit Inclusions
Standard Kit Inclusions
- 3x Step platforms
- 3x Left step holders
- 3x Right step holders
- 1x Upright
- 1x Base plate (Base Swivel)
- 2x Bottom fish plates
- 2x Underside packers
- 1x Left adjustment plate
- 1x Right adjustment plate
- 1x End cap
- 3x STEPZ grip tape (with logo)
- 3x Alcohol wipes
- 1x Instruction sheet
- Bolts included
Specifications
Specifications
Use Case: A modular, marine-grade boarding ladder for boat trailers. Designed for safe, stable, and adjustable access to your boat at launch, retrieval, or storage.
Specifications:
- Product Weight: 6.4kg
- Step Width: 280mm
- Step Spacing: 300mm ± (refer to measurement sheets)
- Overall Height: 890mm - 995mm ±(refer to measurement sheets)
- Material: Marine-grade Aluminium with a raw, factory finish (unpolished, untreated)
- Grip Surface: Branded adhesive non-slip grip tape
- Fixings: Stainless steel
- Load Rating: 120kg
- Mounting: Fits 75mm & 100mm drawbars using included hardware

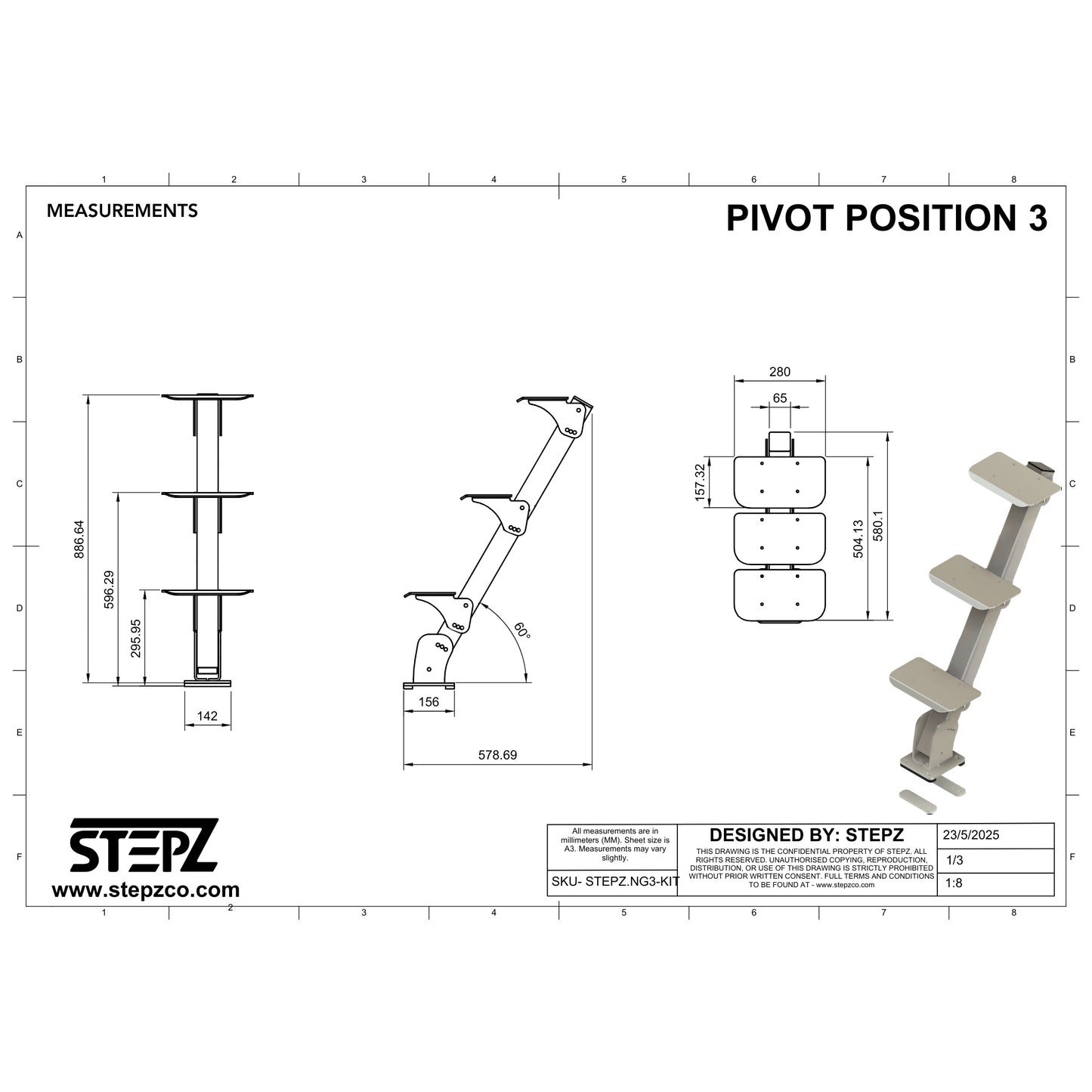

Measurement Guide
Measurement Guide
Our STEPZ ladders are designed to be compatible with most trailers, but trailer designs can vary.
To make sure Stepz is the perfect match for your trailer, all you need is a quick measurement. Follow the instructions in our measuring sheet to see how Stepz will fit in your current setup.
